DPB Dester Plunger
- Piston distributors for the volumetric type system
- Distributes pre-measured volumes of oil utilizing the pump’s direct pressure
Utilizing the pump’s discharge pressure, the DPB model Dester Plunger distributes a pre-measured amount of oil from each port.
According to the Dester Plunger’s body size, model numbers of 0, 10, 20 and 30 are allocated.
Each model / size are available with various number of ports and discharge volumes.
Form code
Specifications
COMPONENTS
| MODEL CODE |
Supply Connection | Outlet Connection | ||||||||
| Supply Nipple |
Copper Gasket |
Rubber Packing |
Bushing | Sleeve | Sealing Plugs |
Bushing | Sleeve | Sealing Plugs |
||
| DPB0Type | — | — | — | PA6 | PB6 | PG10C, PG10N or PG006 |
φ3.2 PA3.2 |
φ3.2 PB3.2 |
PG8C | |
| DPB10Type | — | — | — | PA6 | PB6 | PG10C, PG10N or PG006 |
PA4 | PB4 | PG8C, PG004 or PG104 |
|
| DPB20Type | φ6 | PD612 | 311-0394 | 3-5885 | PA6 | PB6 | PG12C or PG12N |
PA4 | PB4 | PG8C, PG004 or PG104 |
| φ8 | PD812 | 311-0394 | 3-5885 | PA8 | PB8 | |||||
| DPB30Type | φ6 | PD612 | 311-0394 | 3-5885 | PA6 | PB6 | PG12C or PG12N |
PA4 | PB4 | PG8C, PG004 or PG104 |
| φ8 | PD812 | 311-0394 | 3-5885 | PA8 | PB8 | |||||
SPECIFICATION
| MODEL CODE |
Number of Outlet Ports |
Discharge Vol. (c㎥/st) |
Discharge Nipple Code |
Operating Pressure |
Connection Size | |
| Inlet Port | Outlet Ports | |||||
| DPB0 | 2,3,5 | 0.015 | 3-5460 | 0.9～3MPa | M10×1.0 | M8×1.0 |
| 0.03 | 3-5461 | |||||
| 0.05 | 3-5462 | |||||
| 0.08 | 3-5463 | |||||
| DPB10 | 1,2,3,5, 6,8,10 |
0.03 | 3-6819 | 0.8～3MPa | M10×1.0 | M8×1.0 |
| 0.06 | 3-6820 | |||||
| 0.1 | 3-6821 | |||||
| 0.16 | 3-6822 | |||||
| DPB20 (DPF20) |
1,2,3,5, 6,8,10 (2,3,5) |
0.1 | 3-1456 | 0.8～3MPa | M12×1.0 | M8×1.0 |
| 0.2 | 3-1457 | |||||
| 0.4 | 3-1458 | |||||
| 0.6 | 3-1459 | |||||
| DPB30 | 1,2,3 | 0.2 | 3-1443 | 0.8～3MPa | M12×1.0 | M8×1.0 |
| 0.4 | 3-1444 | |||||
| 0.6 | 3-1445 | |||||
| 1.0 | 3-1446 | |||||
| 1.5 | 3-1447 | |||||
※Recommended Viscosity: 20 to 500m㎡/S

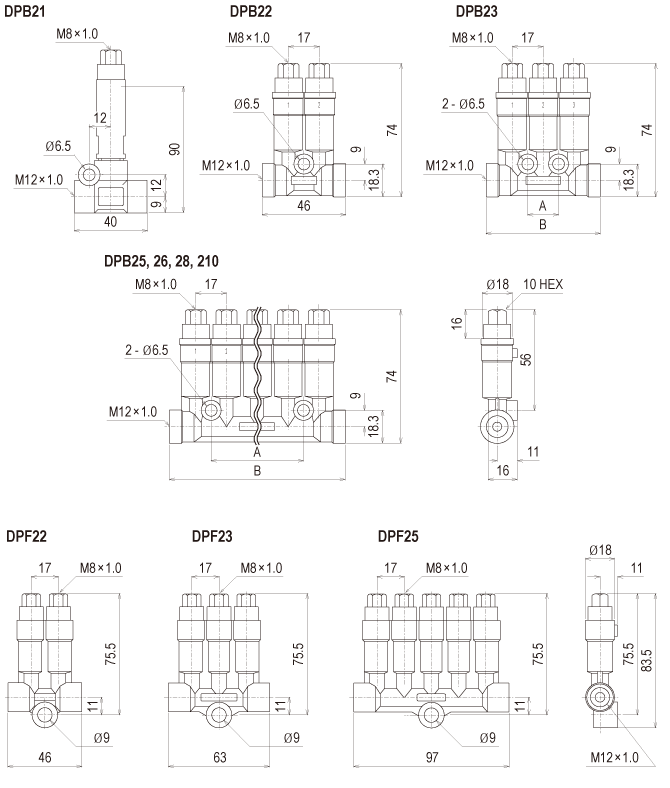

Drawing
