PIPES & TUBES Metal & Polymer Tubes
- Pipes and tubes for distribution channels
- Various materials and sizes available to meet installation requirements
A wide range of pipes and tubes for distributing lubricants are available.
3 types of metal pipes (Copper, Aluminum and Steel) and 3 polymer based pipes (Nylon, Hizex and Surlyn) in various sizes are available to meet various system and installation requirements.

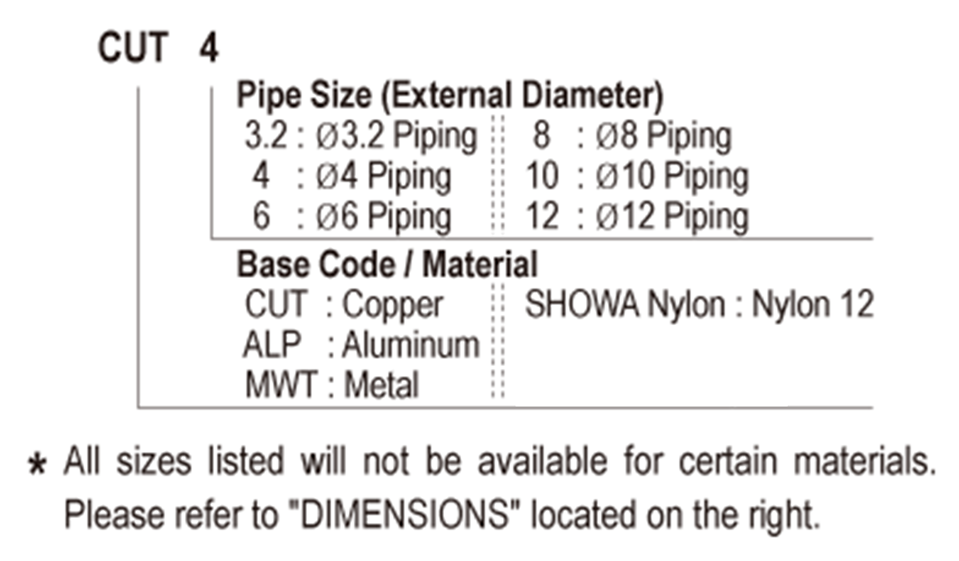

Form code
Specifications
DIMENSIONS (External & Internal Diameter)
| MATERIAL / SIZE | φ3.2 | φ4 | φ6 | φ8 | φ10 | φ12 |
| Copper | × | φ4×φ3 | φ6×φ4.4 | φ8×φ6.2 | φ10×φ8.2 | φ12×φ10 |
| Aluminum | X | φ4×φ2.5 | φ6×φ4 | φ8×φ6 | φ10×φ8 | φ12×φ10 |
| Steel | φ3.2×φ2.4 | φ4×φ2.6 | φ6×φ4.6 | φ8×φ6.6 | X | X |
| SHOWA Nylon | X | φ4×φ2.5 | φ6×φ4 | X | X | X |
| Hizex | X | φ4×φ2.5 | φ6×φ4 | φ8×φ6 | E | E |
| Surlyn | X | φ4×φ2.5 | φ6×φ4 | φ8×φ6 | E | E |
“E” : Please enquire for dimensions.
“X” : Not available.
SHOWA NYLON SPECIFICATION
| Pipe Size (Ext.) | φ4 | φ6 |
| Applicable Mpa at23℃ |
Under 2.4 | Under 2.1 |
| Rupturing Mpa at20℃ |
9.8 | 8.6 |
| Minimum Bend Radius (mm) |
10 | 17 |
| Temp. Range | -20～+60 | |
Other
